Ressence Type 10

Functions

• Hours, minutes, and second time zone

• 120-second runner doubling as a shock absorber

• Colour-coded oil temperature indication

Movement

• In-house self-winding calibre RW-04 with patented ROCS 10 module

• Case back manual winding and time setting

• Magnetic transmission from air to oil across a 0.1 mm titanium membrane

• Expansion membrane for volume compensation

• Power reserve of 60 hours, operating at 28,800 vibrations per hour

Dial

• Convex Grade 5 titanium dial (75 mm diameter)

• Three eccentric biaxial satellites inclined at 9.75° and 17°

• Engraved indications filled with Grade A Super-LumiNova®

Case

• Polished Grade 5 titanium with a hard-DLC coating

• Two separate sealed chambers; upper chamber filled with 2.95 ml of silicone-based oil

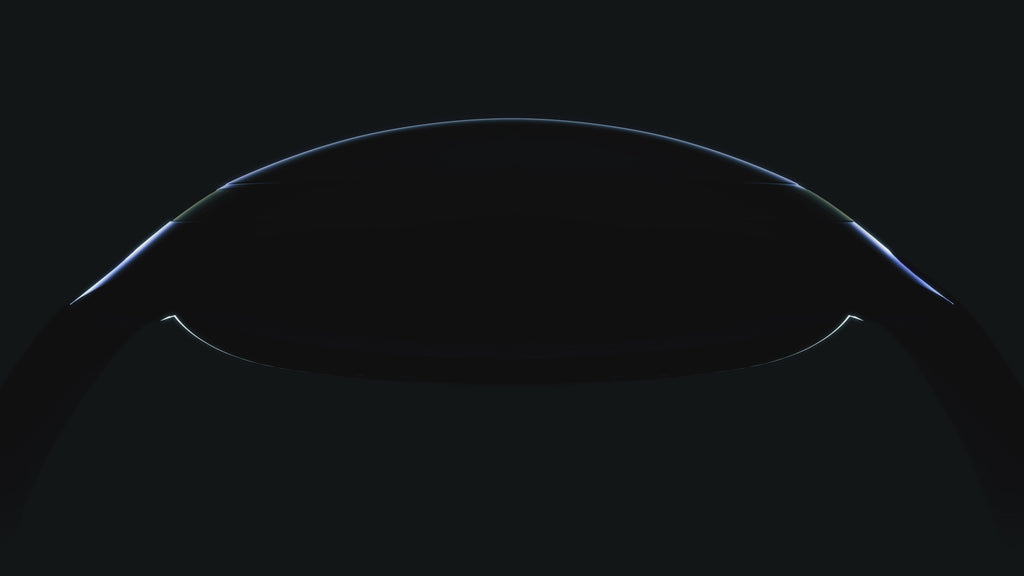

• Double-domed sapphire crystals front and back with internal anti-reflective coating

• Fixed bezel constructed from 24 individual titanium segments

• Water resistance of 5 ATM

• Dimensions: 41.5 mm diameter, 82 grams total weight

Bracelet & Components

• Integrated rubber strap with a polished Grade 5 titanium hard-DLC coated buckle

• Total component count of 538, featuring 252 in the RW-04, 196 in the oil-filled ROCS 10 module, 47 jewels, 49 gears, and 8 ball bearings

Limited to 100 pieces worldwide
